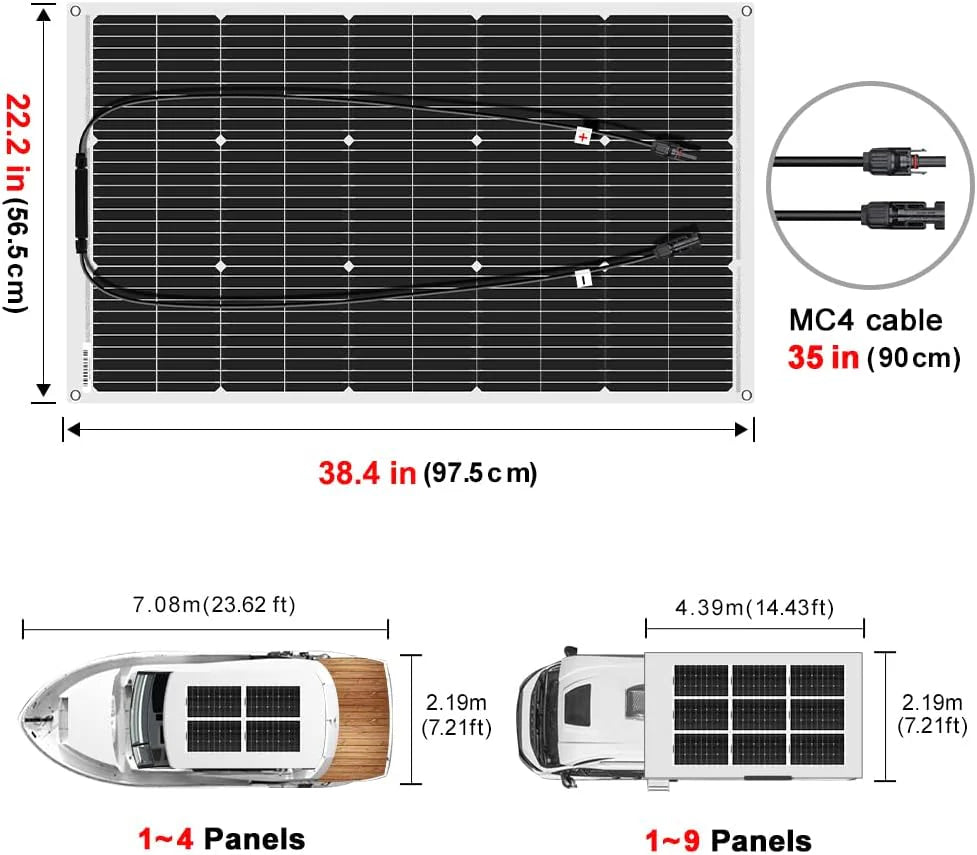

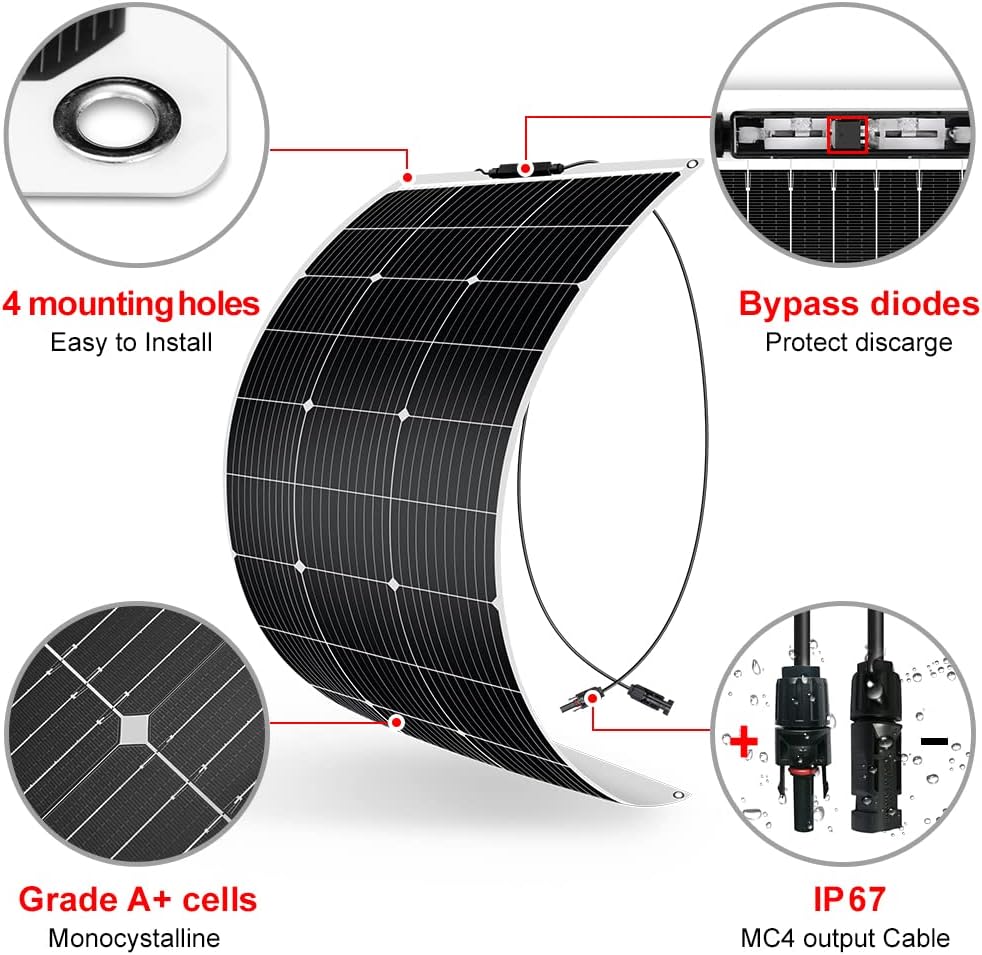

🔌 Output Connector
Standard MC4 connectors compatible with most charge controllers and adapters.
🔧 Connection Methods

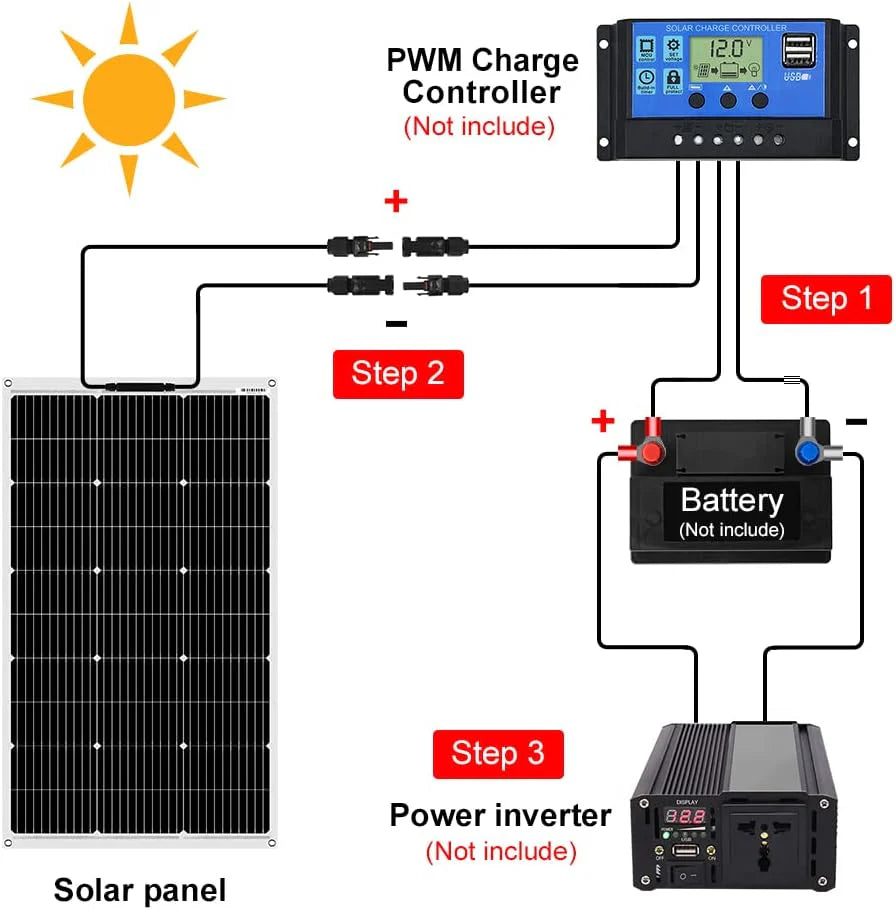

- Single Panel: Plug directly into a 12V PWM or MPPT controller.
- Parallel: Use MC4 Y-branch connectors. Voltage remains 18V; current increases. Best for 12V systems.
- Series: Connect panel + to panel –. Voltage adds up; current stays the same. For 24V+ systems (check controller specs).
⚙️ Charge Controller Compatibility
Supports both PWM and MPPT controllers. MPPT is recommended for optimal efficiency.
🔋 Battery Types
Compatible with sealed, AGM, GEL lead-acid batteries and lithium (LiFePO4, LTO, etc.).
🔌 Power Station Support
Works with most portable power stations (EcoFlow, Jackery, Bluetti). MC4 to Anderson/DC5521/XT60 adapter may be needed. Always check input limits.
